The Department of Defense requires a common framework for our investigations and assessments of chemical warfare agent reports, so we turned to the United Nations and the international community, which had chemical weapons experience (e.g., the United Nations’ investigation of the chemical weapons used during the 1980-88 Iran-Iraq war). Because the modern battlefield is complex, the international community developed investigation and validation protocols^[90] to provide objective procedures for possible chemical weapons incidents. The methodology we are using is based on these international protocols and guidelines. The methodology includes:

• A detailed written record of the conditions at the site;
• Physical evidence from the site such as weapons fragments, soil, water, vegetation, or human or animal tissue samples;
• A record of the chain of custody during transportation of the evidence;
• The testimony of witnesses;
• Multiple analyses; and
• A review of the evidence by an expert panel.

While the methodology used to investigate chemical incidents (Figure D-1) is based on these protocols, the passage of time since the Gulf War makes it difficult to obtain certain types of documentary evidence, and physical evidence often was not collected at the time of an event. Therefore, we cannot apply a rigid template to all incidents, and each investigation must be tailored to its unique circumstances. Accordingly, we designed our methodology to provide a thorough, investigative process to define the circumstances of each incident and determine what happened. The major efforts in our methodology are:

• To substantiate the incident;
• To document available medical reports related to the incident;
• To interview appropriate people;
• To obtain information available to external organizations; and
• To assess the results.

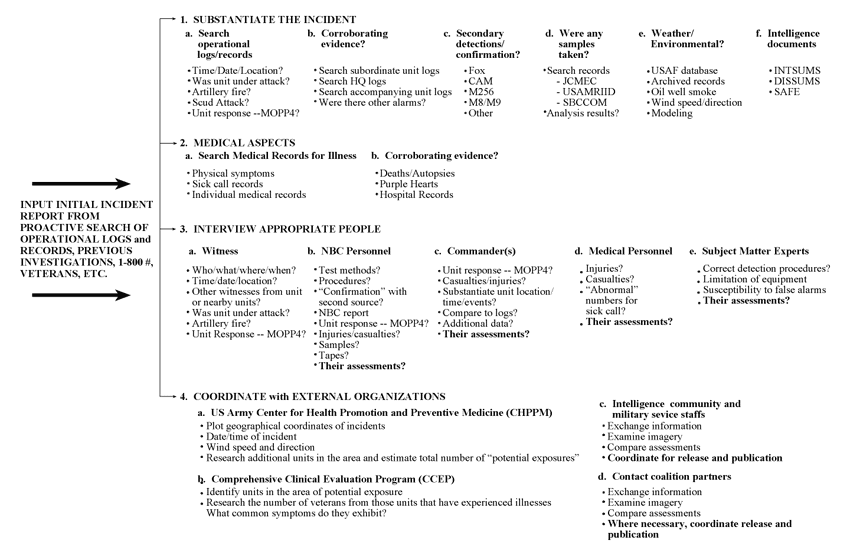

Figure D-1. Chemical warfare incident investigation methodology

A case usually starts with a report of a possible chemical warfare agent incident, often from a veteran. For Muhammadiyat, the case was started because of a concern that the Coalition bombing of Iraq’s chemical storage sites might have released hazardous chemical warfare agents that caused low level contamination among Coalition forces. To substantiate the circumstances surrounding an incident, the investigator searches for documentation from operational, intelligence, and environmental logs. This focuses the investigation on a specific time, date, and location, clarifies the conditions under which the incident occurred, and determines whether there is "hard," as well as anecdotal, evidence.

Alarms alone are not considered to be certain evidence of chemical warfare agent presence, nor is a single observation sufficient to validate a chemical warfare agent presence. The investigator looks for physical evidence collected at the time of the incident that might indicate that chemical warfare agents were present in the vicinity of the incident. Such evidence might include tissue samples, body fluid samples, clothing, environmental samples of soil or vegetation, weapons parts, and Fox MM-1 tapes with properly documented spectrums. For Muhammadiyat, this evidence also included Iraq’s declarations, UNSCOM inspection reports, and intelligence documents.

The investigator searches available medical records to determine if anyone was injured by the incident. Deaths, injuries, sicknesses, etc. near the time and location of an incident are noted and considered. For Muhammadiyat, efforts were made to determine if any of the indigenous Iraqi population near the site suffered a chemical related injury. Medical experts are asked to provide information about any alleged chemical warfare agent casualties.

Normally, interviews of those involved in or near the incident (participants or witnesses) are conducted. First-hand witnesses provide valuable insight into the conditions surrounding the incident and the mind-sets of those involved, and are particularly important if physical evidence is lacking. However, because this narrative is the result of air strikes deep in Iraq prior to the start of the ground war, there are no known first-hand eyewitnesses available for interview. Where appropriate, subject matter experts provided opinions on the capabilities, limitations, and technical data on Iraq’s chemical weapons as well as an assessment of what occurs when air attack or fire catastrophically destroys chemical weapons.

The investigator contacts agencies and organizations that may be able to provide additional clarifying information about the case. These would include, but not be limited to:

• Intelligence agencies that might be able to provide insight into events leading to the event, imagery of the area of the incident, and assessments of factors affecting the case;
• The clinical registries of the Departments of Defense and Veterans Affairs which may provide data about the medical condition of those involved in the incident; and
• Agencies capable of computer modeling meteorological and source characterization data in cases where airborne dispersion of agent is suspected.

Once the investigation is complete, the investigator evaluates the available evidence in order to make a subjective assessment. The available evidence is often incomplete or contradictory and thus must be looked at in the total context of what is known about the incident being investigated. Physical evidence, for example, can be of tremendous value to an investigation. Properly documented physical evidence would generally be given the greatest weight in any assessment. For Muhammadiyat, the testimony of UNSCOM inspectors and contemporaneous Iraqi and UNSCOM documentation is also significant when making an assessment. Testimony from inspectors who also happen to be subject matter experts is usually more meaningful than testimony from untrained observers. Typically, secondhand accounts are given less weight than witness testimony but for this case we have placed great weight in the testimony of UNSCOM inspectors who visited Muhammadiyat. When investigators are presented with conflicting witness testimony, they look for other pieces of information supporting the statements of the witnesses. Investigators evaluate the supporting information to determine how it corroborates any of the conflicting positions. Generally, such supporting information will fit into a pattern corroborating one of the conflicting accounts of the incident over the others. Where the bulk of corroborating evidence supports one point of view more than another, that point of view would be considered more compelling.

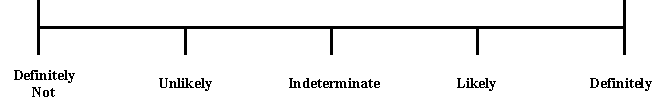

Our assessments rely on the analyst’s evaluation of the available information for each investigation. Because we do not expect to always have conclusive evidence, we have developed an assessment scale (Figure D-2) ranging from Definitely Not to Definitely, with intermediate assessments of Unlikely, Indeterminate, and Likely. The analyst will use this scale to make a tentative assessment based on facts available as of the date of the report publication. Each case is reassessed over time based on new information and feedback.

The standard for making the assessment is based on common sense: Do the available facts lead a reasonable person to conclude that chemical warfare agents were or were not present? When insufficient information is available, the assessment is Indeterminate until more evidence can be found.
